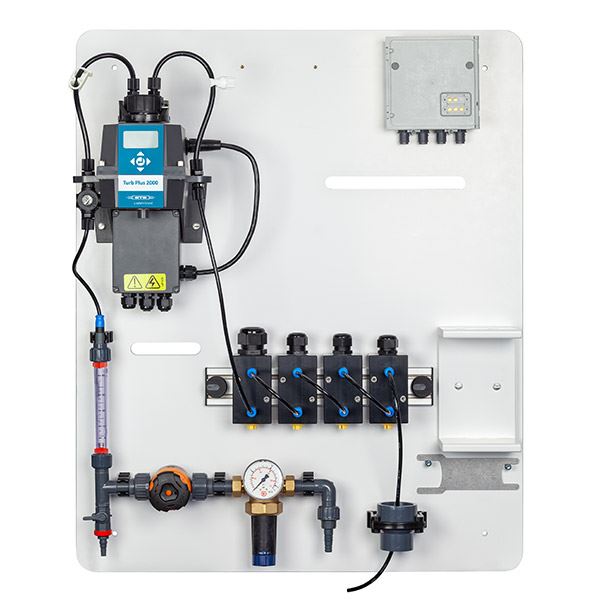

Source Water Monitoring Panel
Specifications
| Outputs Relais: Power outputs: Digital: |
Number selectable (mA) Number selectable Profinet, Profibus, Modbus RTU, Modbus TCP, Ethernet/IP |
| Data logger: | Data memory for up to 525,600 data sets |
| USB interface: | Included as standard on all panels |
| Electrical power supply IQ Sensor Net: | 100 … 240 VAC (50/60 Hz), alternative 24 V AC/DC Turbidity analyzer: 100 ... 240 VAC (47–63 Hz), 80 VA |
| Sample composition: | 5 ... 45 °C (41 ... 113 °F); inlet pressure max. 6 bar; salinity or chloride: 500 mg/l |
| Mechanics: | Panel: PVC rigid foam; IQ Sensor Net: Polycarbonate with 20 % glass fibre; Turbidity analyzer: ABS Flow-through cells/piping: PVC Tubing: PU |
| Dimensions: | 850 x 700 x 225 mm (H x W x maximum D) |
| Weight: | Without/with Turbidity analyzer approx. 10 kg/approx. 12 kg |
| Certifications: | CE, UKCA |
| Warranty: | Varies, depending on the sensor, transducer, analyzer, etc. |
